2.0mm Pitch Board To Board Battery Connector

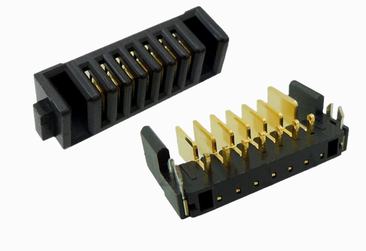

2.0mm Pitch Board To Board Battery Connector
Characteristic
Model parameter
Visiting factories

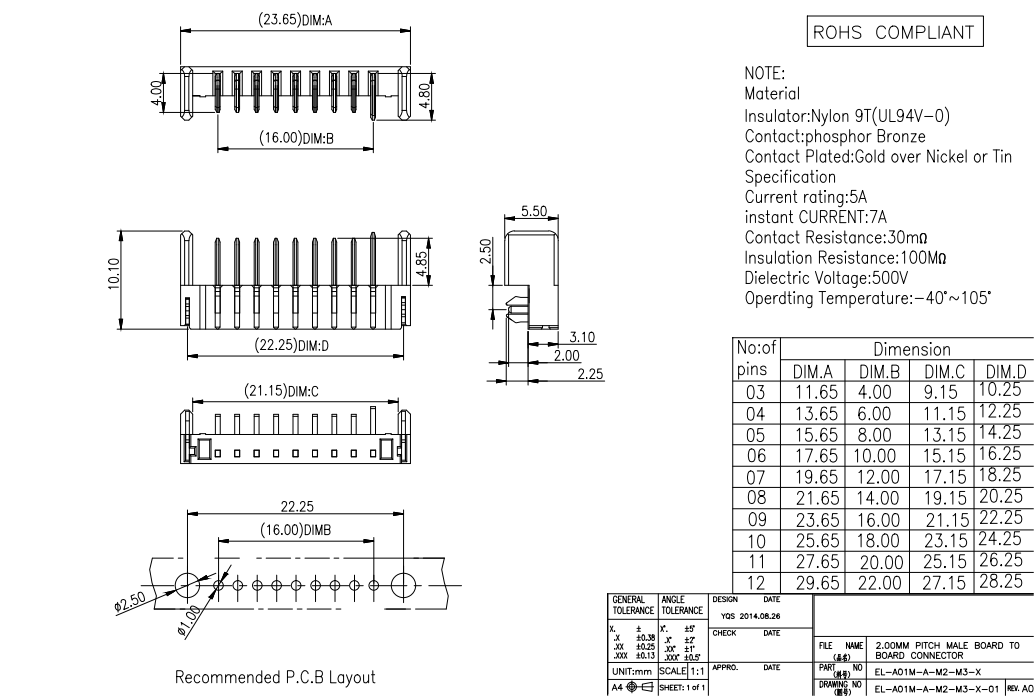

Related drawings
2.0mm Pitch Male And Female Battery Connector
2.0mm Pitch Board To Board Battery Connector
Classification
Battery Connector
Pitch:
2.0mm /0.079''
Mount Type:
Straight(DIP)
Specification:
Current Rating: 5A
Insulat Current: 7A
Contact Resistance: 30mΩ
Insulation Resistance: 100MΩ
Dielectric Voltage: 500V
Operating Temperature: -40℃ to+105℃
Material:
Insulator: Nylon 9T(UL94V-0)
Contact: Phosphor Bronze
Contact Plated: Gold over Nickel or Tin
(1).png)
