Specification:
Current Rating: 2.54Ampere
Insulation Resistance: 1000MΩ Min
Dielectric Withstanding: 600V AC
Contact Resistance: 20mΩ Max
Operating Temperature: -40°C to +105°C
Material:
Contact Material: Brass
Insulation Material: UL94V-0
LCP/NL6T
All material: RoHS&Reach Compliant
Halogen-free is available

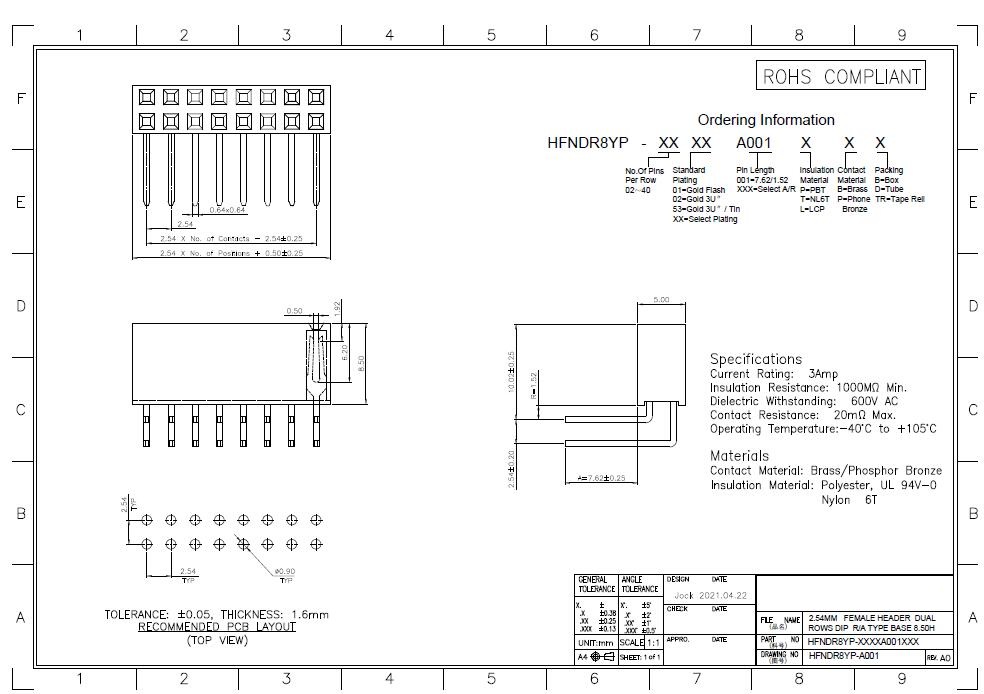

Drawing:
.jpg)
